JULI Internal Organization

( Home )

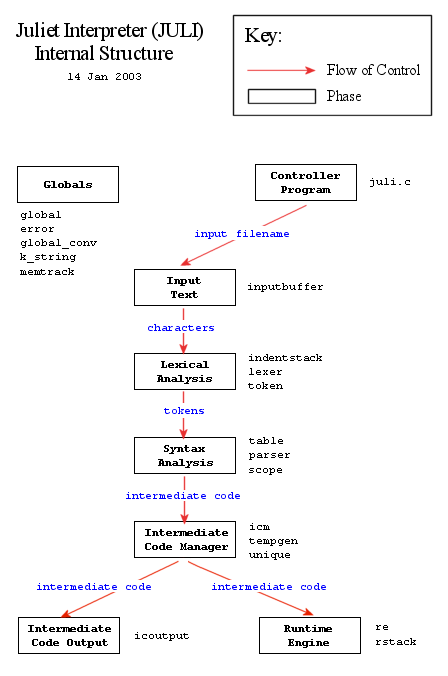

Internal Structure


Phase B: Lexical Analysis

Lexer (lexer.h)

  1. Get characters from the Input Buffer Module
  2. Eliminates comments
  3. Preprocessing: includes files using the "$" command
  4. Identifies indentation


    ALLOCATING AND FREEING MEMORY

     - When allocating memory, always use JALLOC
     - When freeing memory, always use JFREE
     - The only exception to these rules should be in the "memtrack.h"
       module.

    ALLOCATING A "Symbol"

     - If a module allocates a Symbol and does not delete that Symbol
       itself, each allocated Symbol should be added to the end-of-
       program deletion list using: scope_add_symbol_to_list (Symbol*)
     - If a module allocates a Symbol and deletes the Symbol itself,
       the above may be ignored.

    ROUTINES

     - There are 3 runtime stacks operating concurrently for routines:
       Call Stack: Used to hold the return addresses when a routine
                   is called.
       Return Stack: Used to pass parameters to the callee and to
                     return the return value to the caller.
       Local Stack: Used to save local variables and intermediate
                    variables prior to routine calling and then to
                    restore those variables at exit.

     - Stack Manipulation Order (Routine Call)

         pushl a      {{ push local vars to LocalStack
         pushl b      {{ "
         pushl c      {{ "
         pushl T1     {{ push temporaries to LocalStack
         pushl T2     {{ "
         pushl T3     {{ "
         pushr z      {{ push parameters to ReturnStack
         pushr y      {{ "
         pushr x      {{ "
         call test    {{ push return address to CallStack, go to "test"
         popl T3      {{ pop temporaries from LocalStack
         popl T2      {{ "
         popl T1      {{ "
         popl c       {{ pop local vars from LocalStack
         popl b       {{ "
         popl a       {{ "
         popr r       {{ pop returned value from Return Stack

     - Stack Manipulation Order (Routine Body)

       Example Juliet Code:
         rout test:int (x:int, y:int, z:int)
           (body)
           return r

       Corresponding Romeo Code:
         popr x       {{ pop arguments from ReturnStack
         popr y       {{ "
         popr z       {{ "
         (body)       {{ body of routine
         pushr r      {{ push return value to ReturnStack
         ret          {{ go to location popped off of CallStack
